Living with a Labyrinth:  More about the maze.


MATERIALS were chosen to represent the Four Elements.
   AIR:  LIMESTONE
   This creamy white variety has a few marine snail fossils.
   It is soft and chalky because the outcrops were exposed to weathering.
   EARTH:  SERPENTINE
   A dark green low-temperature, high-pressure metamorphic rock
   composed of fibrous iron-magnesium silicate minerals, with stringers
   of white marble and a sprinkling of tiny black metallic magnetite crystals.
   It is recrystallized from igneous oceanic crust derived from the
   deep within the earth's mantle.

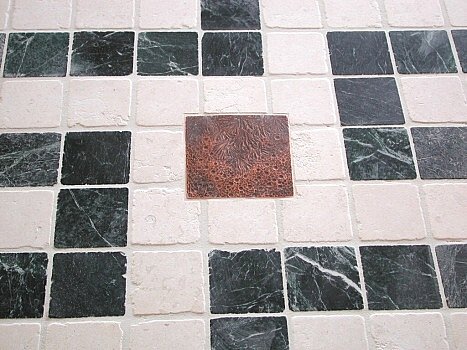

   FIRE:  COPPER
   Three 6" x 3/16" plates with Lorena's hammered and oxidized designs
   of flames and smoke.

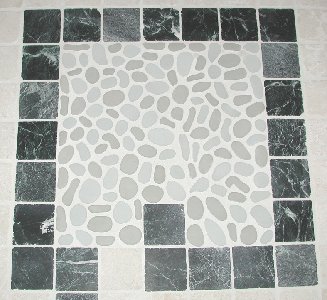

   WATER:  GLASS
   Frosted clear and gray 1" - 3" rounded pieces.

STATISTICS
This is a labyrinth or unicursal maze, with a single path to the center and no side paths.
The maze and border are 11 x 11 feet (3.3 m).  They are surrounded by saltillo tile.

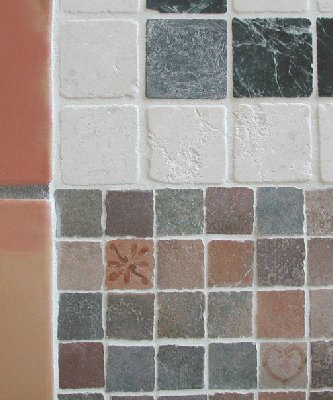

The entrance faces West.  The border on the East edge is of 2" plain and decorated multicolored ceramic tiles.
The serpentine path is 168 feet (51 meters) long and has 497 tiles.
The limestone border has 565 tiles and also forms a maze with a single path to the center.  A single trip to the center and back on the limestone path using the method of Theseus is 369 feet (120 meters) in length.

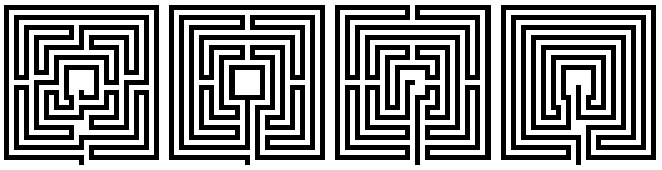

DESIGN
The maze pattern was adapted from a round design by Tom Baxter.
The square version is a hybrid between the classical Roman maze (path travels four quadrants in succession around a square)
and the very ancient classic seven-circuit pattern found in many places around the world.
We wanted a pattern that would be interesting to look at, meaningful to walk for meditation, fun to dance...and would fit our living room floor in 4" tiles.
We experimented with our own designs and squared many traditional round patterns, including those from chapels and cathedrals
at Hohenberg, Chartres, Guingamp, and Ravenna.

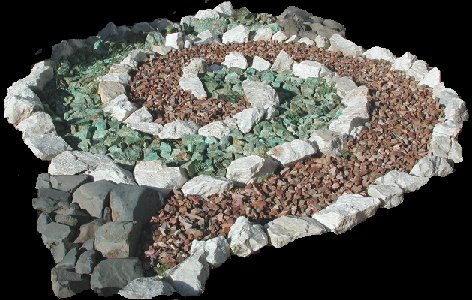

YARD ART:  Rain Spiral
Marble, copper ore, iron oxide-rich siltstone, basalt.  10 feet across.


XII Trance Four of Spikes
Maze cards from the Ironwing Tarot


Maze Carrier:  Box Turtle Shell
